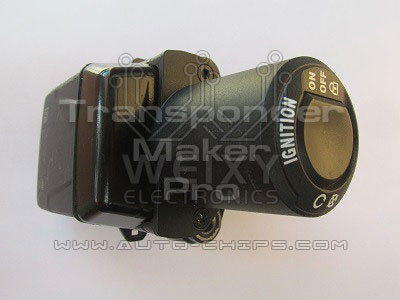

Memory device is Motorola 9S12XS256.
You can read Motorola 9S12XS256 with TMPro, download connection diagram.
Expected file size is 8192 bytes.
If Motorola is LOCKED, software will unlock it automatically before to read eeprom area.
Also you can synchronise engine ECU and immobox if they are not matched pair.
Use Texas Crypto 128-bit transponder, for example Toyota H transponder.
Written transponder is ready programmed to start bike.
IMPORTANT NOTE:you must place transponder close to antenna under seat for to start bike. Software can program ORIGINAL UNLOCKED BMW handsfree key, but it is VERY HARD to find such key (but exist).
Vehicles equipped with this unit:
BMW: R1200GS
synchronise engine ECU and immobox if they are not matched pair:
Below is procedure how to match BMW immobox and engine ECU
1.Read eeprom area from TRICORE MCU in engine ECU.You need tool that can read TRICORE MCU.
2.Connect immobox to TMPro and start software.
3.Load TRICORE file in TMPro.Software 198 will pops-up.
4.If your immobox is module 191,please select manually module 191.
5.Press SELECT AND WRITE MEMORY DEVICE button.Procedure for matching will begin.
6.At end of procedure TMPro will read eeprom area.
7.Program new transponder(s).
Job done.
