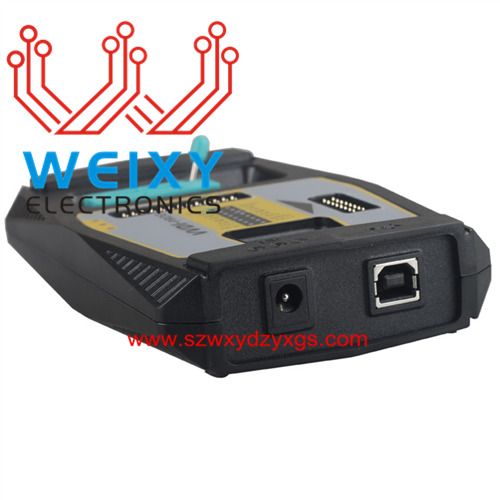

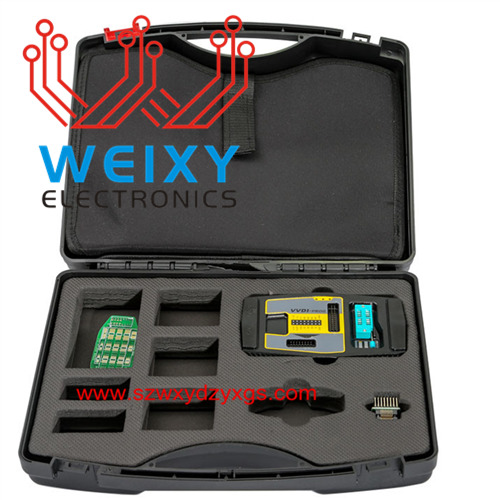

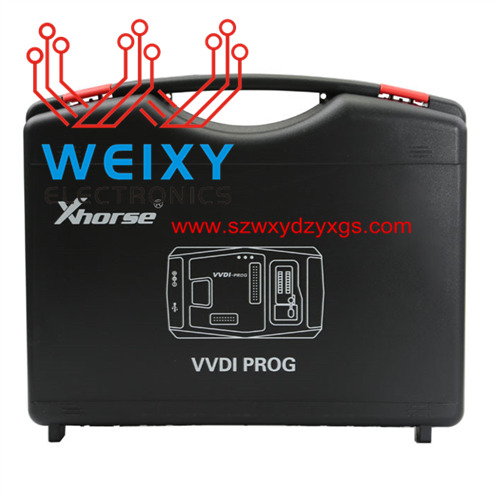

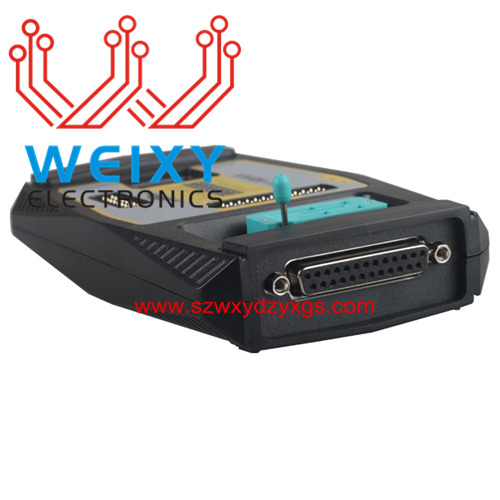

Xhorse VVDI PROG Programmer

Name: Xhorse VVDI PROG Programmer
Brand: Shenzhen Weixinye Electronics Co.,Ltd
SKU: WXY1854
Price: 449 USD
Availability: InStock

No.WXY1854

The built-in update software allows user to update VVDI Prog firmware timely.
High-speed USB communication interface enable the software automatically connect.
Smart operation mode: the possible causes of error will be listed
Reserve ports: for future

0.0 (0 Reviews)

14 Sold

$449.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (1)

Description

Top 7 seasons to get VVDI Prog V4.6.0:
1.Support R&W lots of chips, include MC9S08 series, MC68HC(9)12 series,MC9S12 series, V850 series, H8X series, R8C series, PCF79XX series and most eeprom chips
2.Support chip data verify, check blank function
3.Support data file compare function
4.Support R&W BMW N20, N55 ECU ( show ISN directly )
5.Stable R&W MC9S12XE series chips (5M48H/1N35H/2M53J/3M25J etc.)
6.Support renew PCF79XX remote, currently support BMW E/F series
7.Lots of connection diagram

Buy VVDI-Prog programmer, get free BMW ISN read function and NEC, MPC, Infineon etc chip continously update service
How To Update VVDI Prog Programmer Online

This function require internet support

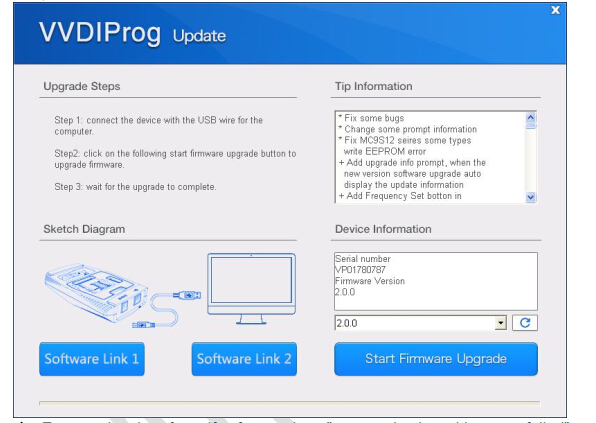

Click the “Upgrade” button enter the upgrade interface, show as following picture

Enter update interface, if software show ”communication with server failed”,please close your Anti-virus and computer firewall and retry. If software show “unable to find equipment”, please reconnect device
Tip information show the latest software version and upgrade information
Device information show the device SN, device firmware version and the latest firmware version

Firmware upgrade steps:
1. Select the firmware version
2. Click “Start Firmware Upgrade” button
3. Don’t close or pull out USB cable before upgrade finished

Software upgrade steps:
1. Click “Software Link 1” or “Software Link 2” button, download software from the web
2. Extract the file

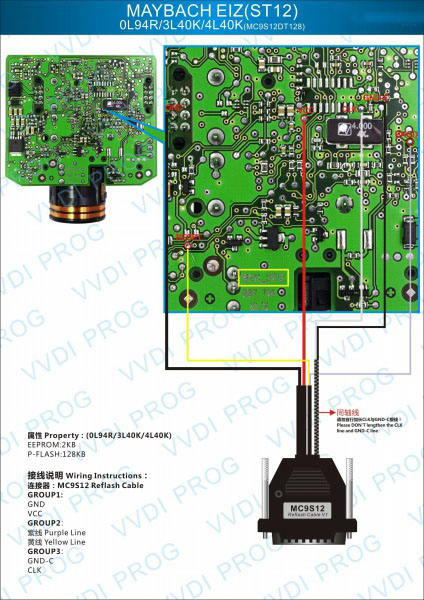

VVDI PROG Connection for Maybach:

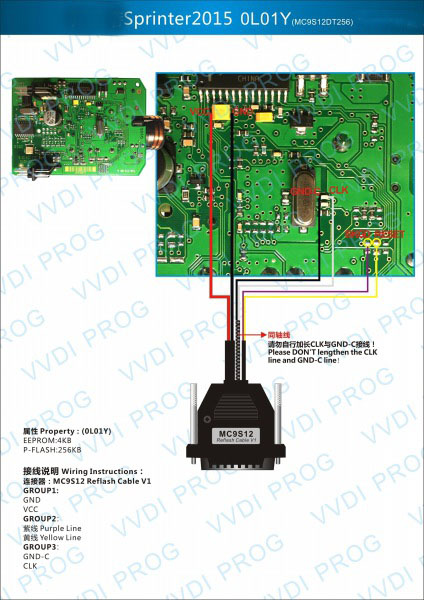

VVDI Prog Connection for Sprinter:

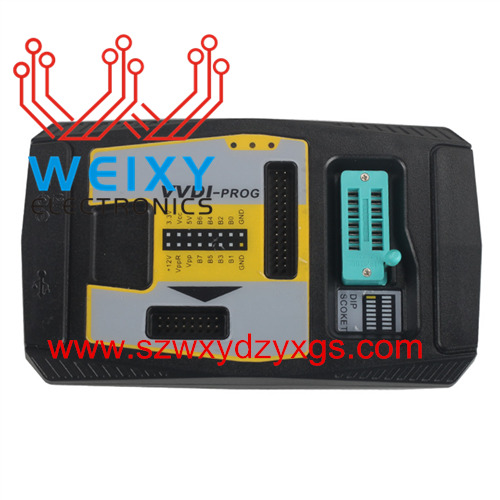

VVDI Prog Programmer Unit Description:

1.16 Pin DIP socket Function:

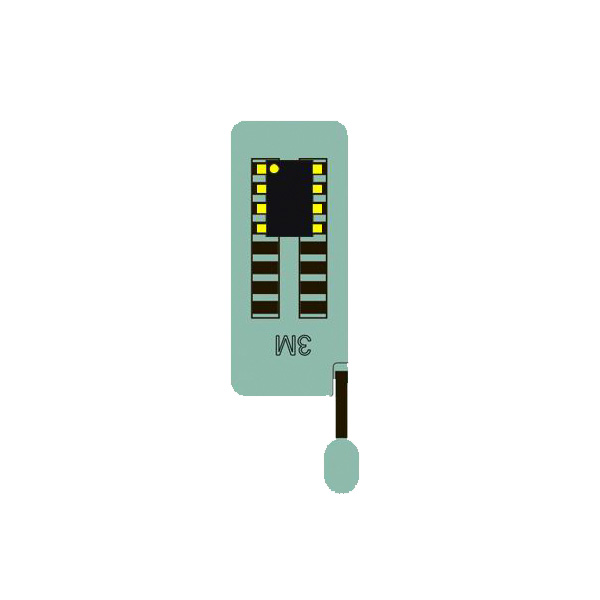

Read EEPROM chips Use method: Follow the image direction when insert the DIP chip (PIN1 as yellow point show as the picture);
SOP chip need soldering on 16Pin adaptor first, then insert the chip follow the image direction

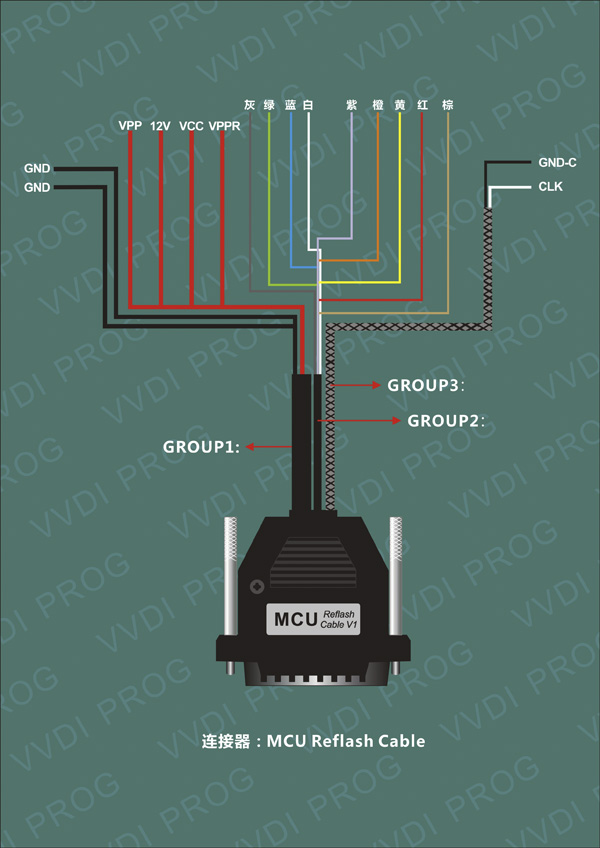

2. MCU Reflash Cable
    Function:       Read & Write MC68HC(9)12, V850, H8X, R5C series chips,current version is V2
   Use method: Soldering the line on pin of chip before read & write
   Notes:
     (1) Please check all connection lines,ensure correct and reliable connection
     (2) Please Don’t lengthen CLK and GND-C line, maybe cause read data failed.

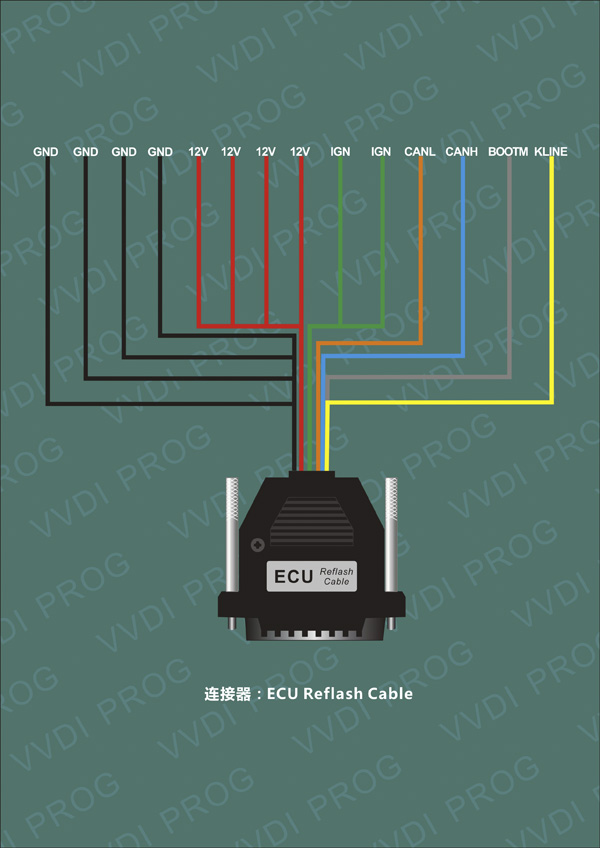

3. ECU Reflash Cable
        Function:          Read & Write engine ECU
        Use method:   Connect the ECU and R&W
      Notes:               Please check all connection lines, ensure correct and reliable connection

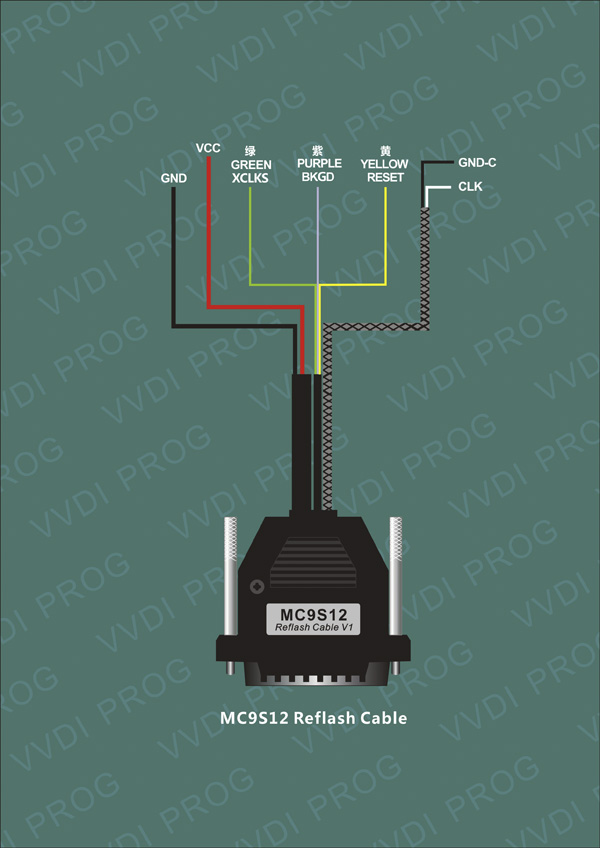

4.MC9S12 Reflash Cable
     Function: Read & Write MC9S08, MC9S12 series chips, current version is V1
     Use method: Soldering the line on pin of chip before read & write
   Notes:
       (1) Please check all connection lines,ensure correct and reliable connection.
       (2) Please Don’t lengthen CLK and GND-C line, maybe cause read data failed.

VVDI Prog Programmer Supported Type List:
Memory:
ATMEL,CATALYST,EXEL,FAIRCHILD,INTEL,MICROCHIP,MITSUBISHI,ST,TOSHIBA,XICOR

MCU:
RENESAS V850,RENESAS H8X,RENESAS R8C,MOTOROLA MC68HC(9)08,MOTOROLA MC68HC(9)12
MOTOROLA MC9S08,MOTOROLA MC9S12,NXP PCF79XX,ST ST10F,INFINEON XC2XXX,ATMEL,ATMEGA XXXX,
INFINEON XC164CS,MICROCHIP PIC18F,
VVDI Prog Programmer Support Model List:
ECU List:
BMW E Series,BMW F Series,BOMBARDIER,CHANGAN,DELPHI,MAGNETI,MARELLI,RENAULT,OTHER

IMMOBILIZER List：
AUDI,BENZ,BMW,BUCIK,CHEVROLET,STEC,CHRYSLER,FIAT,FORD,GREATWALL,INFINITI,LANDROVER,JAGUAR,NISSAN,OPEL,PORSCHE,RENAULT,SAICMOTOR,VOLKSWAGEN,ZHONGHUA.

DASHBOARD List:
BUICK,CHANGAN,CHERY,CHEVROLET,DONGFENG,FAW,FORD,GEELY,GREATWALL,HAFEI,TOYOTA,HANTENG,HAIMA,HONDA,JAC,JAGUAR,JINBEI,JMC,LUXGEN,NISSAN,SGMW,VOLOVO,ZHONGHUA,ZOTYE,

REMOTE List:
BMW E Series,BMW F Series
