Test platform for BMW G-series BDC2 & BDC3

No.WXY6230
SKU:
📘 Product Manual Download
Video Watch
0.0 (0 Reviews)
117 Sold
$0.00 $89.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity
-
+
Add to Favorites (2)
  • Test platform for BMW G-series BDC2 & BDC3
  • Test platform for BMW G-series BDC2 & BDC3
  • Test platform for BMW G-series BDC2 & BDC3
  • Test platform for BMW G-series BDC2 & BDC3
  • Test platform for BMW G-series BDC2 & BDC3
  • Test platform for BMW G-series BDC2 & BDC3
  • Test platform for BMW G-series BDC2 & BDC3
  • Test platform for BMW G-series BDC2 & BDC3
  • Test platform for BMW G-series BDC2 & BDC3
  • Description
Standard Version

BMW G-Series BDC2 & BDC3
Test Platform

A professional bench test platform designed for BMW G-Series BDC2 and BDC3 immobilizer systems, dashboard testing, keyless entry functions, and supported ECU connections.

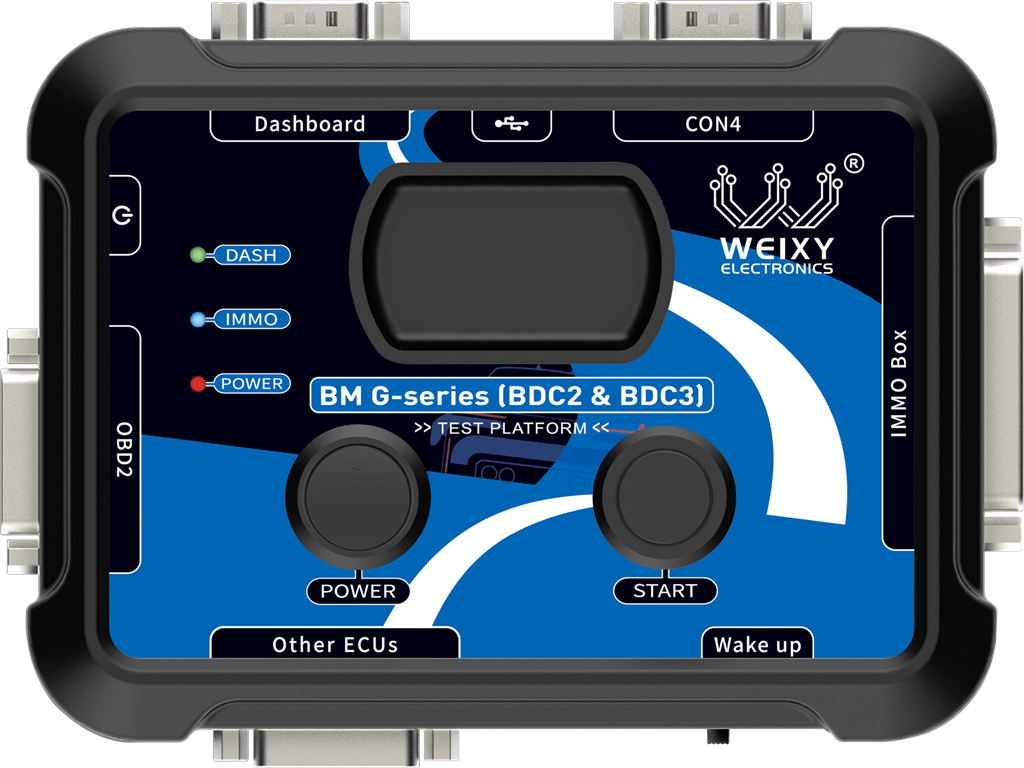

BMW G-Series BDC2 & BDC3 Standard bench test platform
BDC2 & BDC3 Support Dashboard CAN Wake-Up Multi-ECU Bench Connectivity

One Platform. Core BMW G-Series Coverage.

Connect your BMW G-Series bench-capable dashboard and immobilizer boxes to the core testing platform.

Bench Coverage
BDC2

BDC2 Immobilizer Box

BDC3

BDC3 Immobilizer Box

DASH

Dashboard

ECU

Other ECUs

No Vehicle Required
01

BDC2 & BDC3 Bench Support

Supports BMW G-Series BDC2 and BDC3 immobilizer boxes for bench testing, diagnosis, and coding.

02

Dashboard CAN Wake-Up

Force the dashboard to wake up using the CAN signal and wake-up button, even without a working key.

03

Multi-ECU Connection

Connect additional control units directly for flexible bench setups.

Built for Essential BMW G-Series Bench Work

Core capabilities designed for reliable G-Series electronic testing and diagnosis.

01 — BDC2 & BDC3

Immobilizer Bench Support

Supports BMW G-Series BDC2 and BDC3 immobilizer boxes for bench testing, diagnosis, and coding.

02 — Dashboard

Dashboard CAN Wake-Up

Use the CAN signal and Wake Up button to force the dashboard to wake up, even without a working key.

03 — ECUs

Multi-ECU Connection

Connect additional control units directly for flexible bench setups.

04 — Keyless Entry

Keyless Entry Antenna Testing

Test the keyless entry antenna using the built-in key coil and supported bench connections.

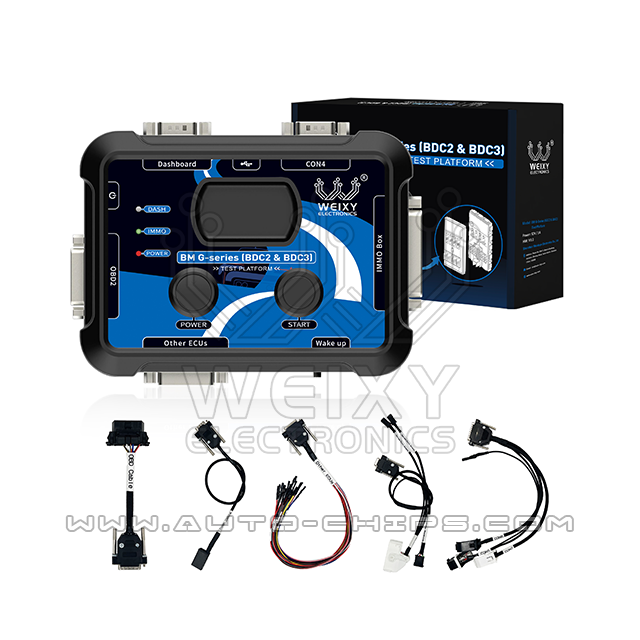

Built for Simple, Clear Bench Operation

Simple physical controls with clear status indication.

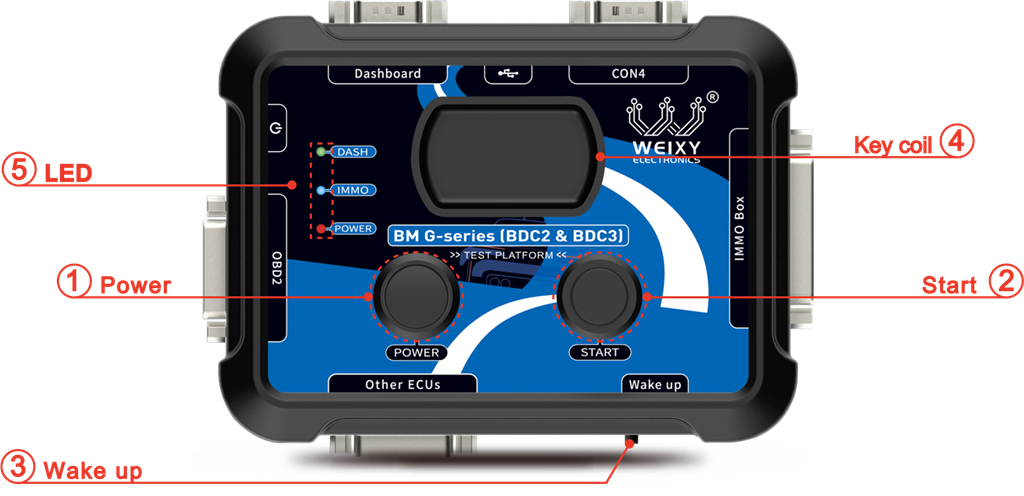

BMW G-Series BDC2 & BDC3 platform physical controls and LED layout
Physical Controls
01PowerExternal power supply input.
02StartBegins bench operation.
03Wake UpForces dashboard wake-up via CAN signal.
04Key CoilKeyless entry antenna test coil.
05LEDClear status indication.
LED Status
DASH — GreenLights up when the dashboard is awake and running on the bench.
IMMO — BlueLights up when the immobilizer box can communicate.
POWER — RedLights up when external power is connected.

Flexible BMW G-Series ECU Connections

Connect the dashboard, immobilizer box and supported ECUs directly on the bench.

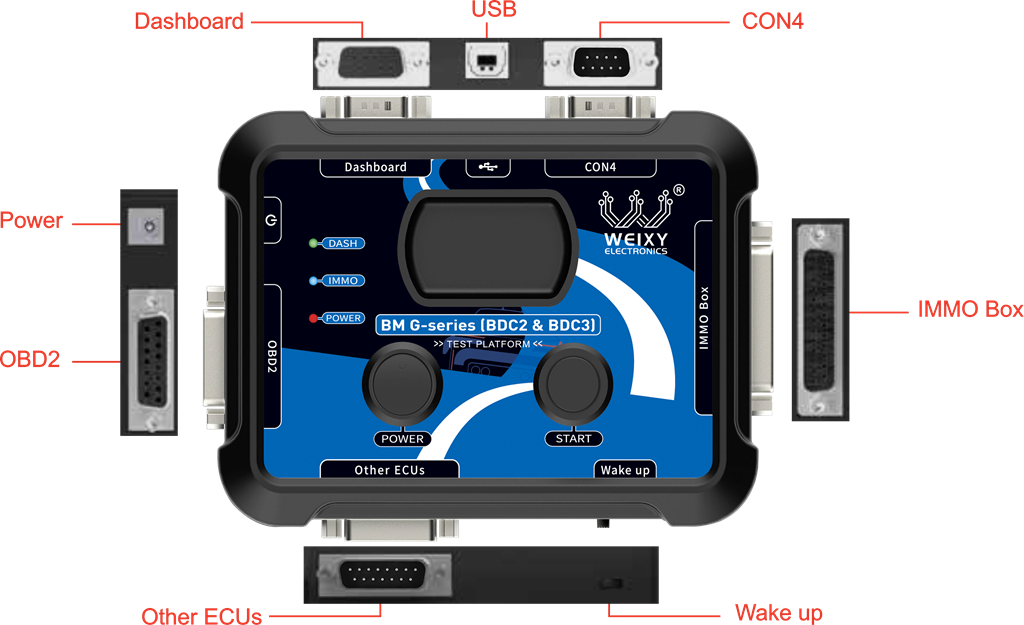

Connection Details
DashboardDB9
CON4DB9
IMMO BoxDB25

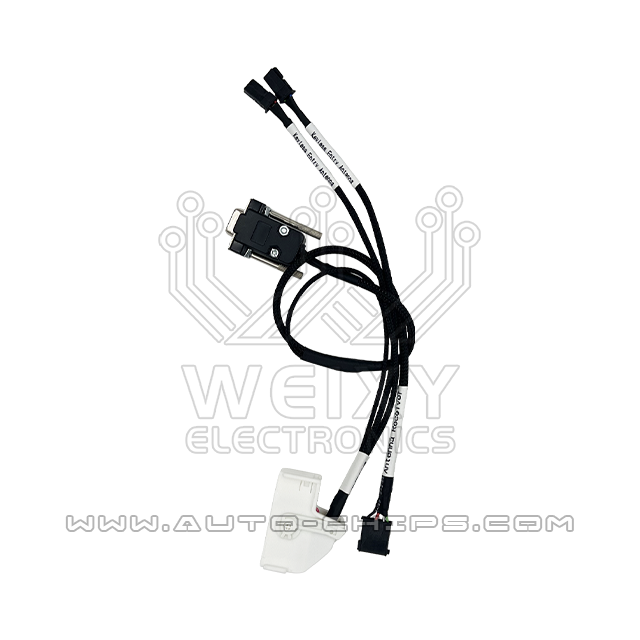

Antenna ReceiverVia Dashboard Cable
Keyless Entry AntennaCON3 / CON7 / CON8
Other ECUsDB15
OBD2DB15
Power / Wake Up / USBDirect
NOTE: The Other ECUs connector is DB15; a dedicated cable is not included in the Standard Version. The Professional Version adds the dedicated cable required for MDG1 DME/DDE and 8HP EGS Gen2/Gen3 support.

Choose Your BMW G-Series Bench Platform

Start with the core platform or step up to complete Professional coverage.

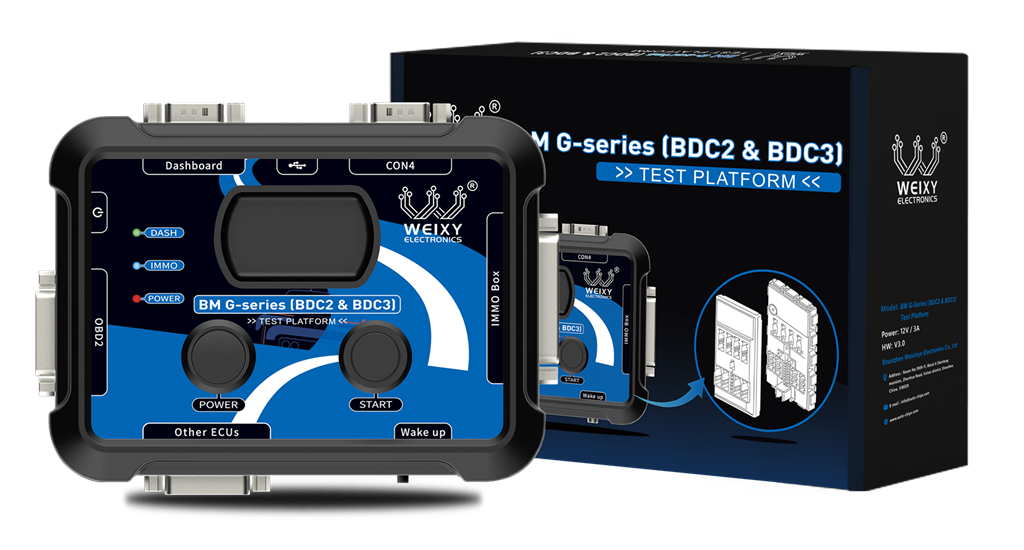

BMW G-Series Standard Version bench test platform
You Are Here

BMW G-Series Test Platform

Standard
Version

Best For
  • BMW G-Series BDC2 / BDC3 repair
  • Dashboard & immobilizer bench testing
  • Bench diagnosis, coding, and programming
  • BDC2 & BDC3 support
  • Dashboard CAN Wake-Up
  • Multi-ECU connection
  • Bench diagnosis & coding
You Are Here

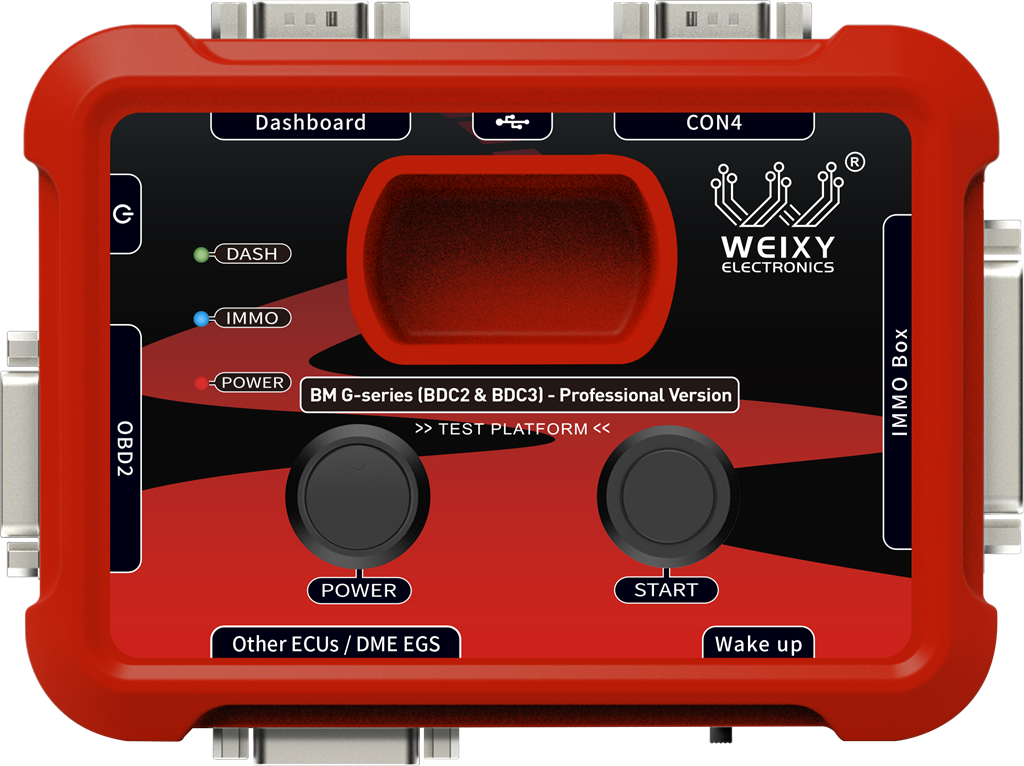

Professional Version

BMW G-Series Test Platform

Professional Version

Best For
  • Automotive electronics workshops
  • Engine & transmission ECU work
  • Key programming & advanced workflows
  • Everything in the Standard Version
  • MDG1 DME/DDE support
  • 8HP EGS Gen2/Gen3 support
  • Advanced key programming setup
View Professional

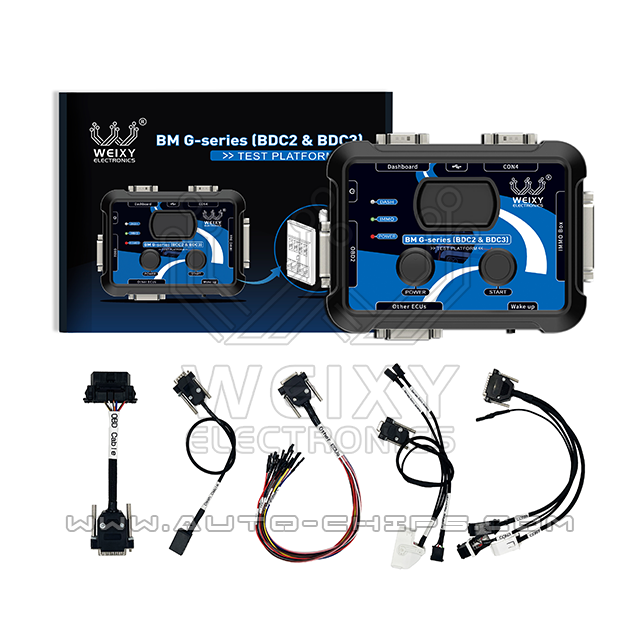

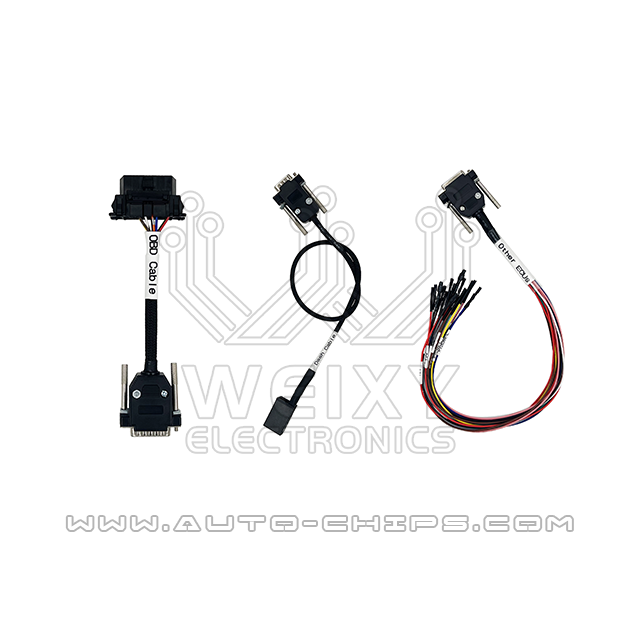

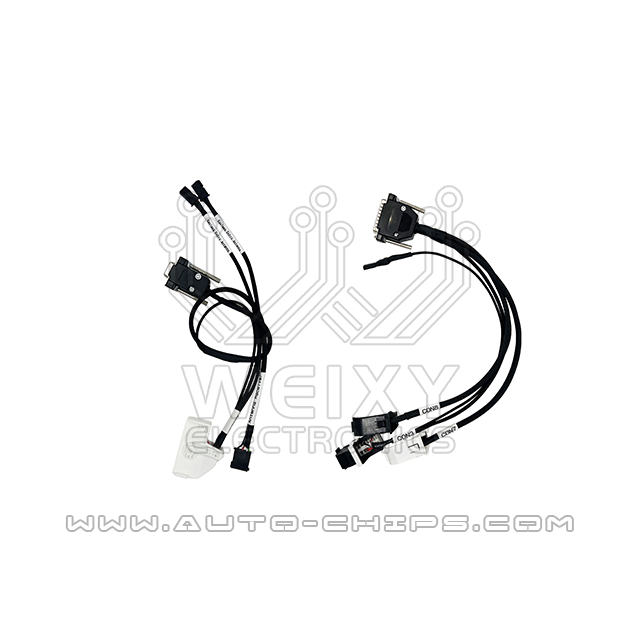

What's Included

Everything you need to build the BMW G-Series bench setup.

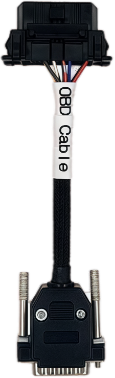

Cable for OBD

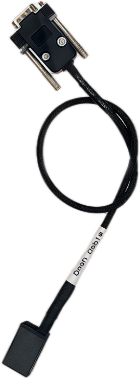

Cable for Dashboard

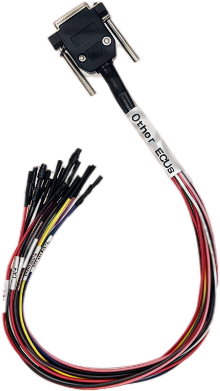

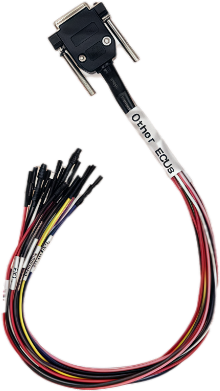

Cable for Other ECUs

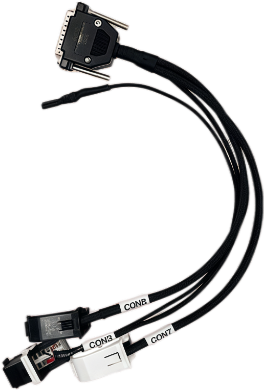

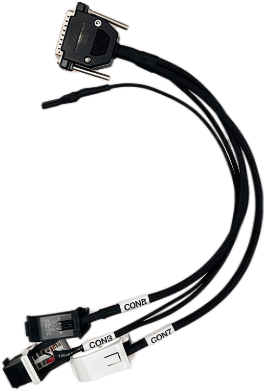

Cable for CON3/CON7/CON8

Cable for CON4

Bench Connection Diagram

Build Your BMW G-Series Bench Setup

Connect the required modules according to the diagram and perform bench operations directly with your diagnostic equipment.

BMW G-Series BDC2 & BDC3 bench connection diagram

Follow the diagram for correct bench connections.

Frequently Asked Questions

What's the difference between the Standard Version and the Professional Version?

The Professional Version adds support for MDG1 DME/DDE and 8HP EGS Gen2/Gen3, along with an advanced key programming bench setup.

Do I need a working key to use the platform?

No. Connect the BDC2 or BDC3 immobilizer box and dashboard, then use the CAN signal and Wake Up button to force the dashboard to wake up without a working key.

Does the Standard Version support key programming workflows?

Yes, within its supported scope. The Standard Version provides the bench connections needed to run key programming workflows on connected BDC2/BDC3 modules through your diagnostic or programming tool. The Professional Version extends this with additional MDG1 DME/DDE and 8HP EGS Gen2/Gen3 connections for more advanced key programming bench setups.

Which diagnostic tools can be used?

The platform provides the required bench connections for compatible diagnostic and key programming tools. Connect your tool through the available OBD2 and module interfaces.

What is included in the Standard Version?

The Standard BMW G-Series BDC2/BDC3 platform includes the unit and dedicated cables for OBD, dashboard, other ECUs, CON3/CON7/CON8, and CON4.

Ready to Start BMW G-Series Bench Work?

One reliable bench platform for BMW G-Series BDC2 and BDC3 immobilizer and dashboard work.

Get the BMW G-Series Test Platform
BMW G-Series: BDC2 · BDC3 · Dashboard · Multi-ECU
